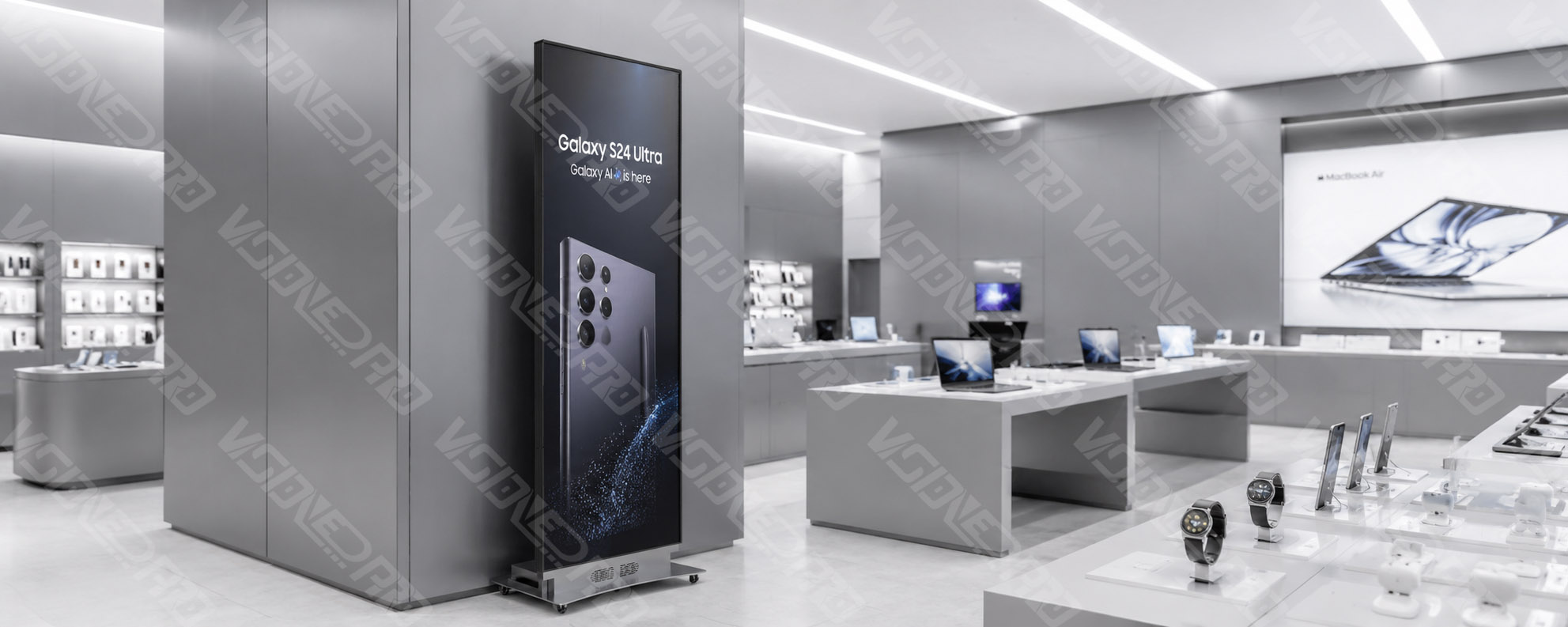

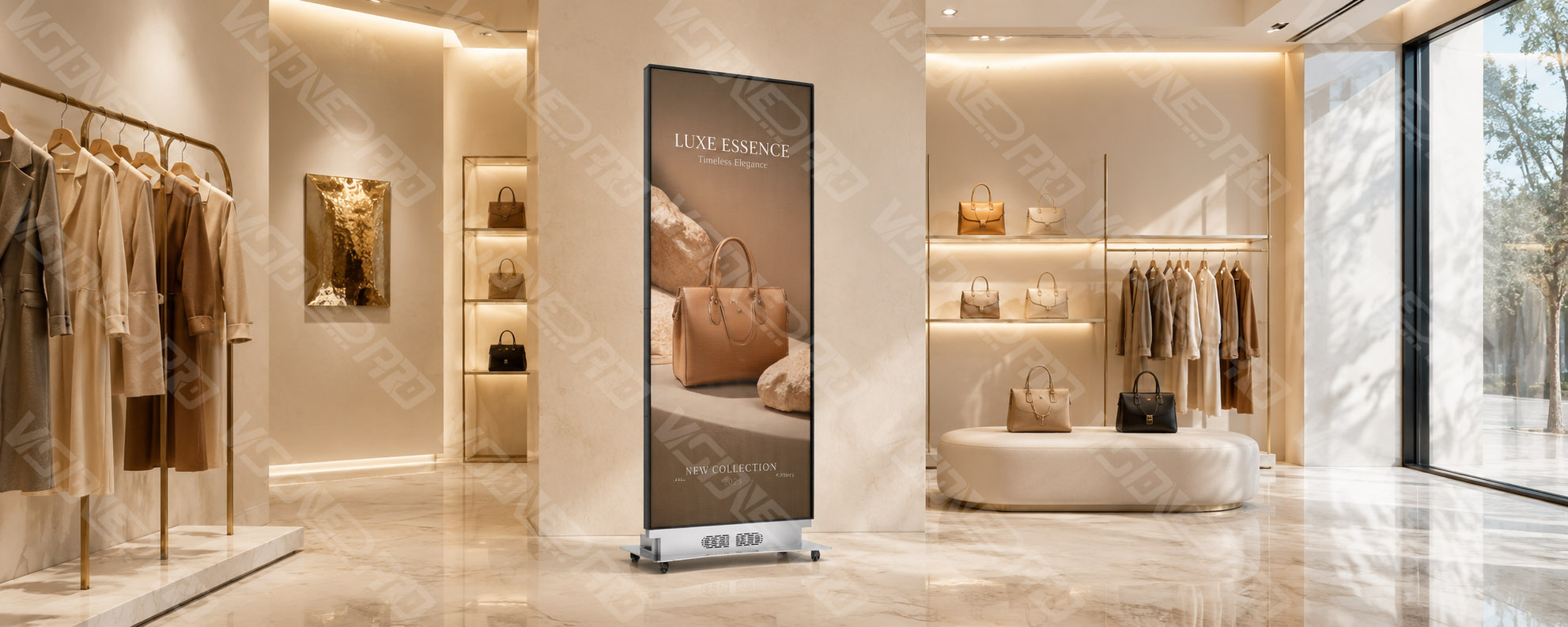

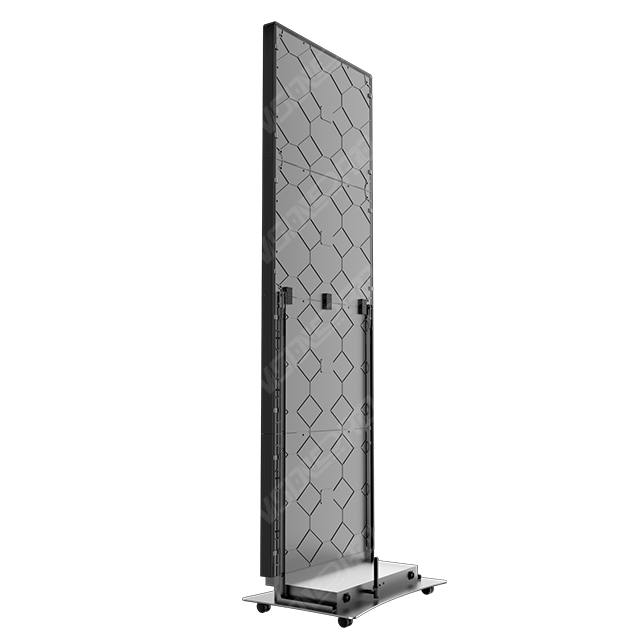

IP series LED Poster makes your ads happened in anywhere, especially in exhibition halls, cafes, restaurants, shopping mall, etc. our IP-G can realize seamless splicing with frameless profile by GOB technology. Optional installation solutions include ceiling hanging, floor standing, and wall mounting.
Ultra-slim and lightweight
High refresh rate & wide viewing angle
Multiple control playback modes
Multiple installtion method
2-6 units splicing to be large screen
Fast heat dissipation by module with aluminum shell
P1.75/P2/P2.5 Led Module & Panels & Screens available

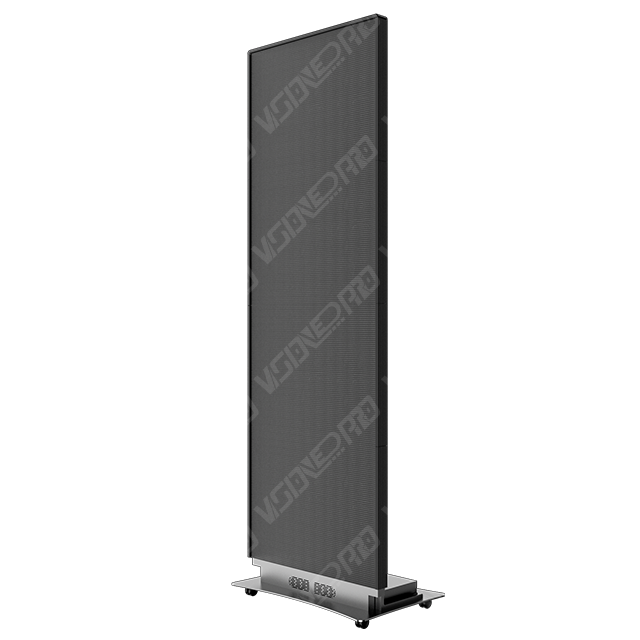

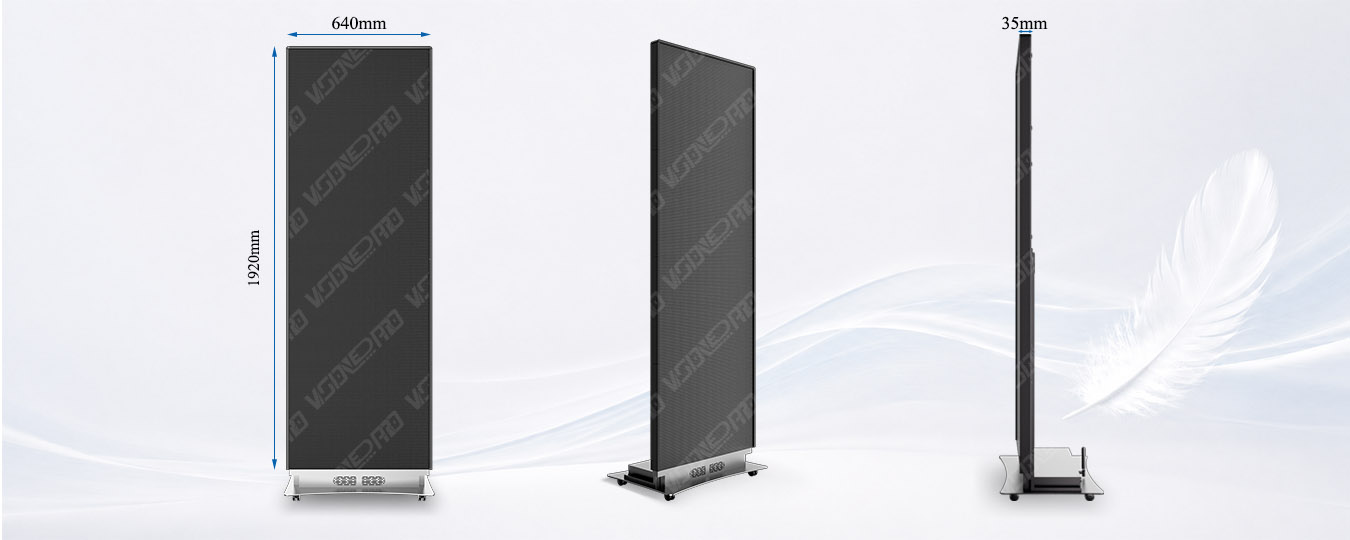

Only 35mm in thickness, standard size: 83 inches, die-casting aluminum structure provides exceptional structural rigidity, ensuring the poster remains stable and reliable.

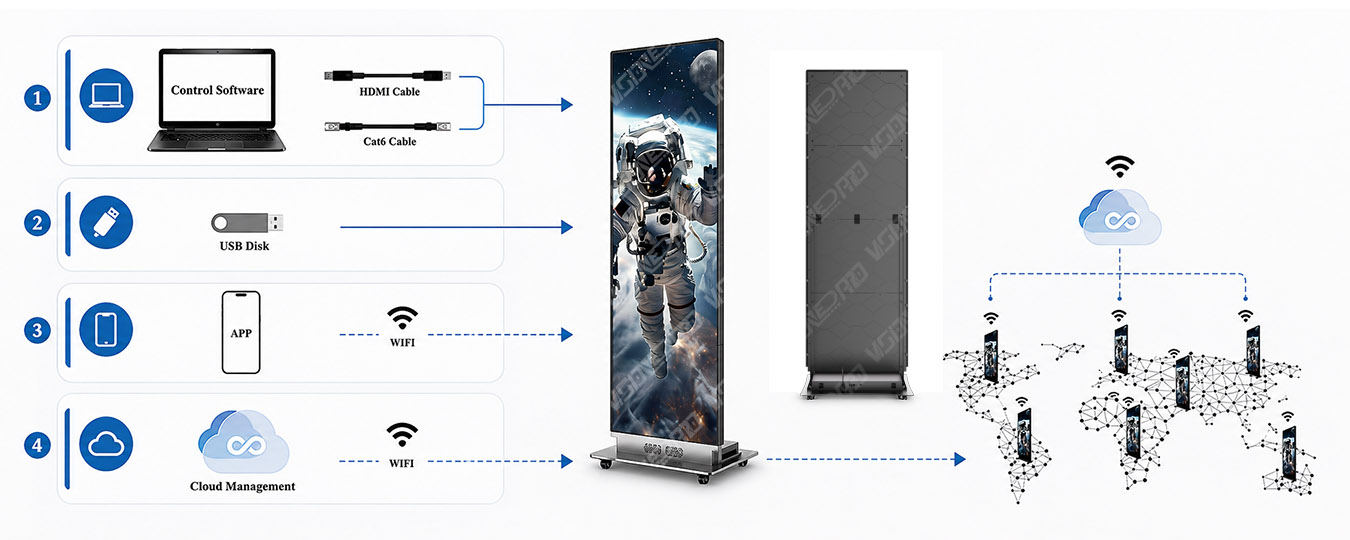

Sync play: HD self adaption
USB flash disk: Plug and play
Async play: Wireless control
Cluster cloud play: Anytime and anywhere controlling

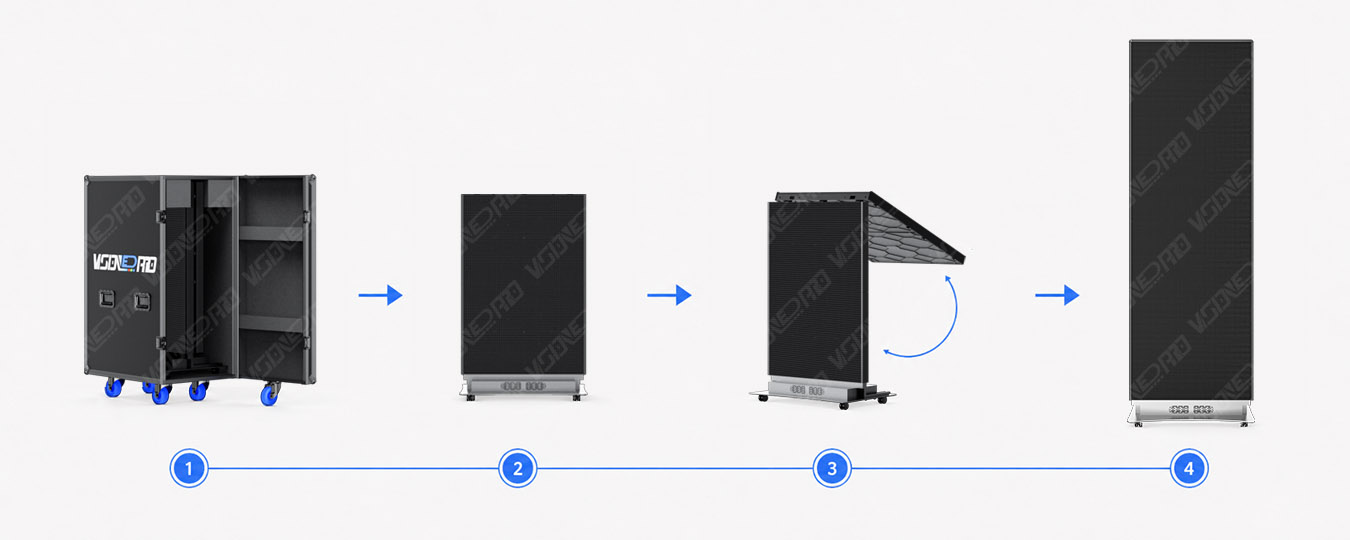

IP Series screen can be folded in half from the middle of the screen, making them easy to transport and install in various environments

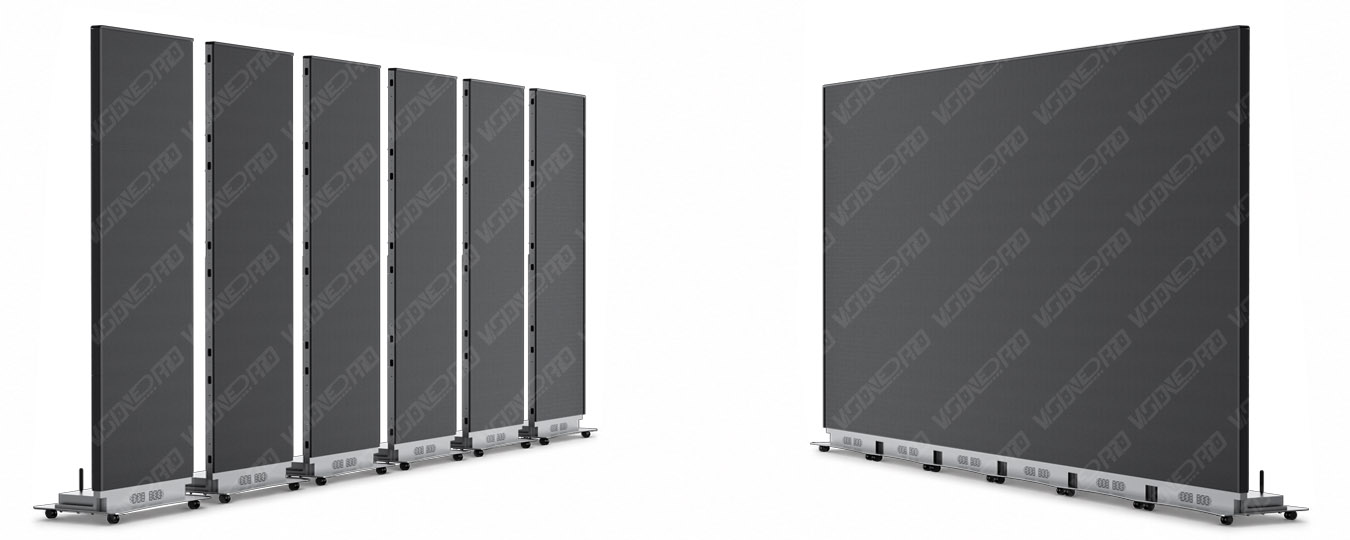

Left & Right edge of frame is with rotatable design, easy to flip the poster to be frame-less, splicing two poster together seamlessly in 6 seconds, Supports

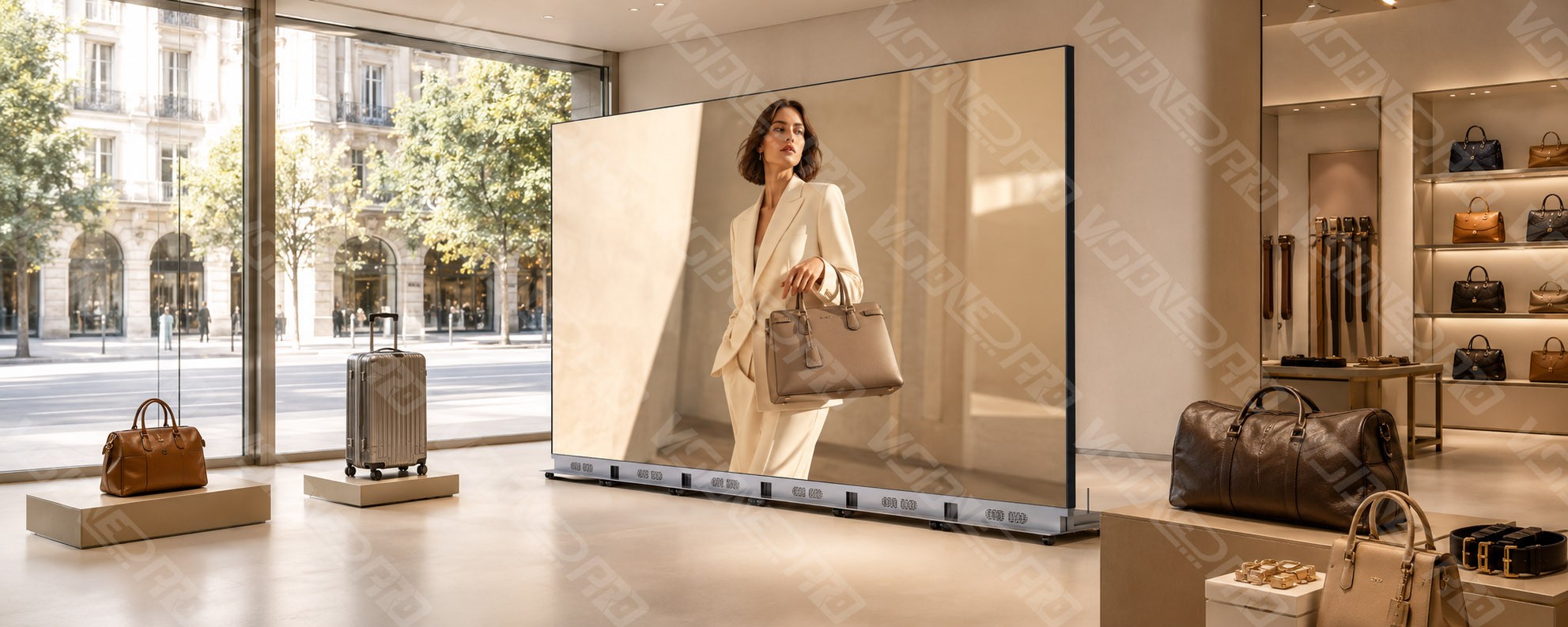

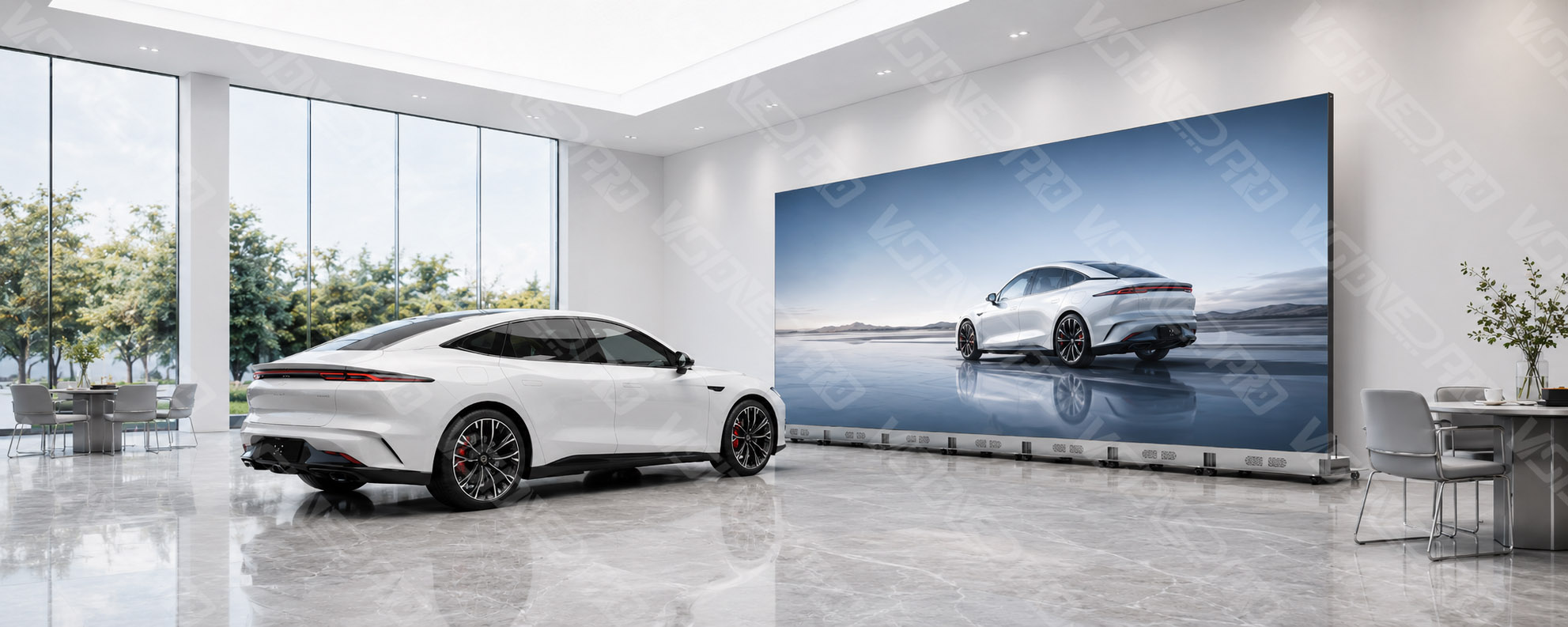

seamless splicing of up to 6 posters, 6 units IP.1.8 can be spliced into 1920*1080 resolution.
| Items | IP-1.2 | IP-1.5 | IP-1.8 | IP-2.5 |
| Pixel Pitch (mm) | 1.25 | 1.53 | 1.875 | 2.5 |
| LED | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| Resolution | 512X1536 | 416X1248 | 344X1032 | 256X768 |
| Display Size (mm) | 640*1920 (25.2"x75.6") | |||
| Frame Dimension(mm) | 664*2074*35 (83 inches) | |||
| Weight | 39kg (85.98 lb) | |||
| Gray Scale | 14 bit | |||
| Operation System | Android | |||
| Materials of Structure | Die Casting Aluminum & Profile | |||
| Refresh Rate | 3840HZ | |||
| Contrast Ratio | 4000:01:00 | |||
| Application environment | Indoor | |||
| Brightness | 1000 nits (8 level adjustable) | |||
| Input Voltage | 100V-240V | |||
| Power Consumption | Average: 200W; Max: 600W | |||
| Working Temperature | 0℃～40℃ | |||
| Life Span | ≥100000Hours | |||
| Installation | Base/Standing/Hanging/Wall mounted (optional) | |||
