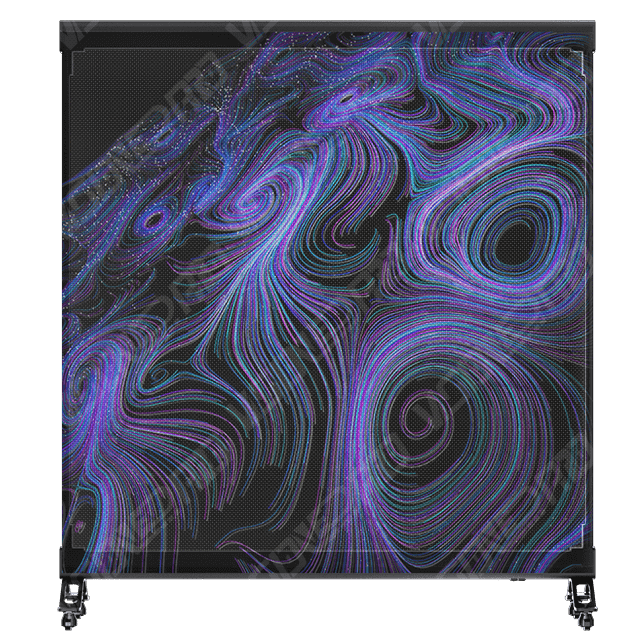

HG Series is a transparent Holographic LED display, this technology creates the illusion of 3D holograms using LED panels, without requiring special glasses or additional viewing devices. This product is installed behind the glass facade, suitable for retail, offices, entertainment venues for advertising and more applications.
Stick on Glass Installation
Ultra Thin & Ultra Light & Extremely High Transparency
High brightness and Contrast
Customized size
Support Whole Frame Design- Plug and Play
No Splicing Structure & Nice Image Quality
Multiple Installation Method

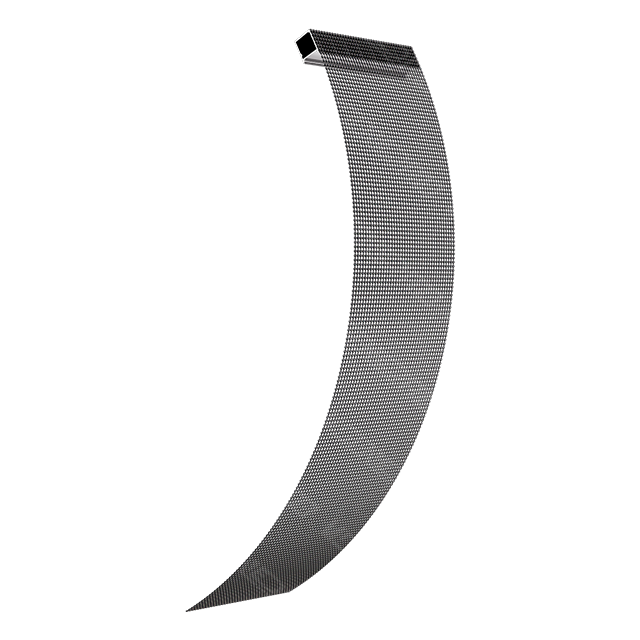

Standard modules can be bent, and used flexibly.
The best partner for curved glass and special-shaped screen. One single LED module height max. is 1.5m high, can create a 3m high screen without any visible bar in the middle of the whole screen which create amazing high transparent LED display effect.

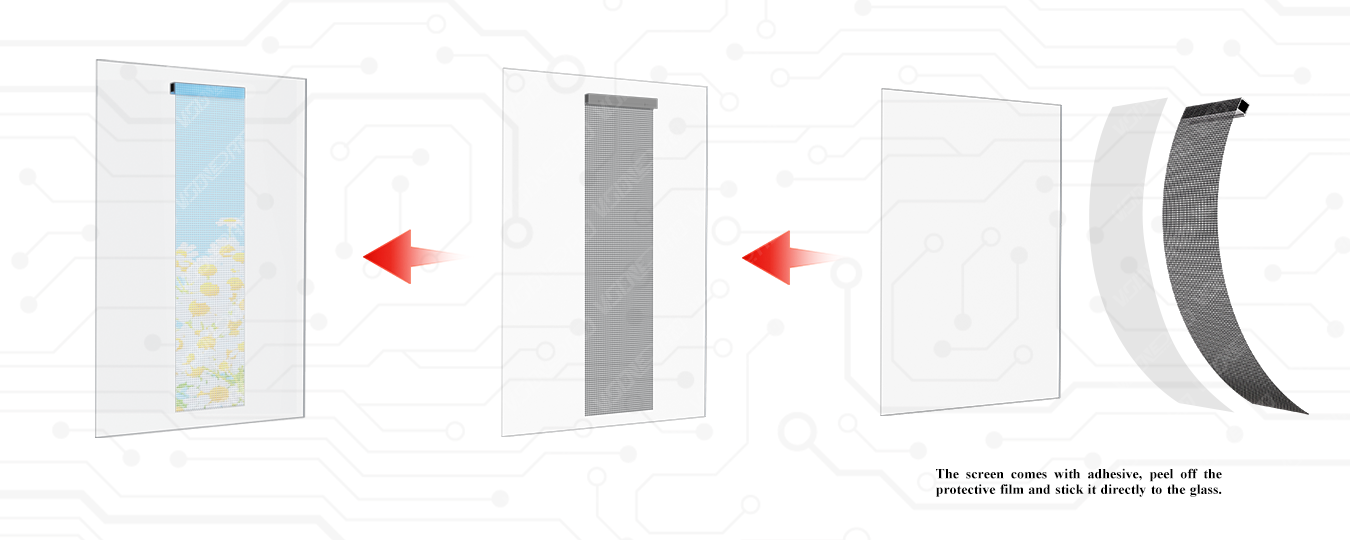

The screen comes with adhesive, peel off the protective film and stick it directly to the glass.

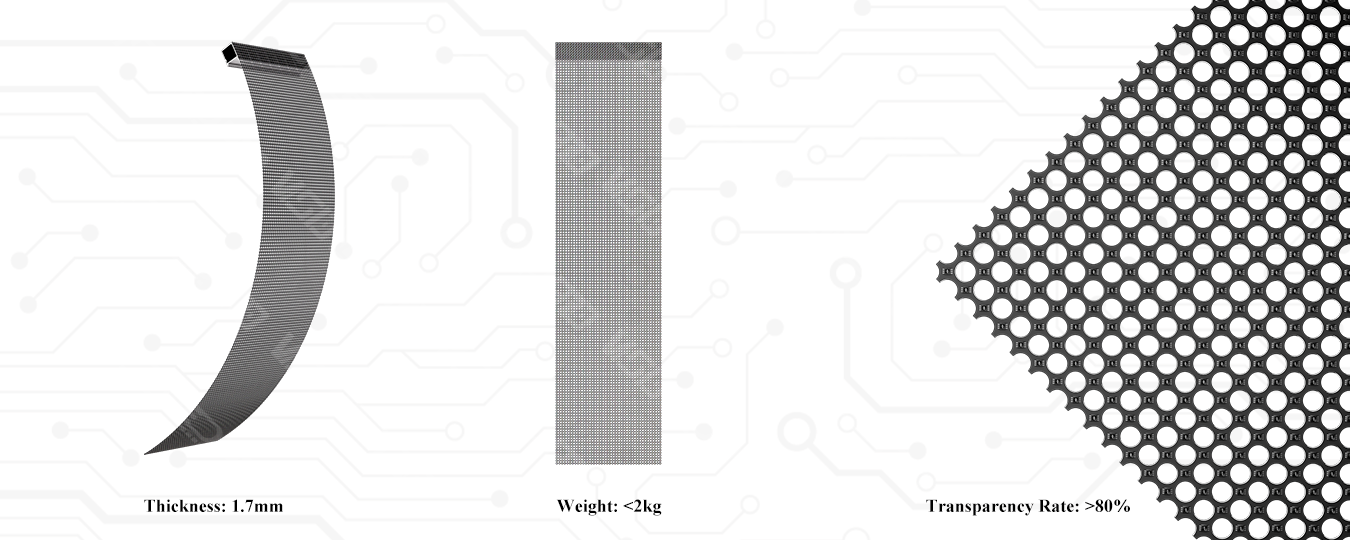

The panel is only 1 .7mm thick and weighs less than 2kg. more than 80% transparency, absolutely unobstructed views, maintains visibility through the screen, allowing natural light and clear sight-lines. Showing dynamic content while keeping the environment visible.

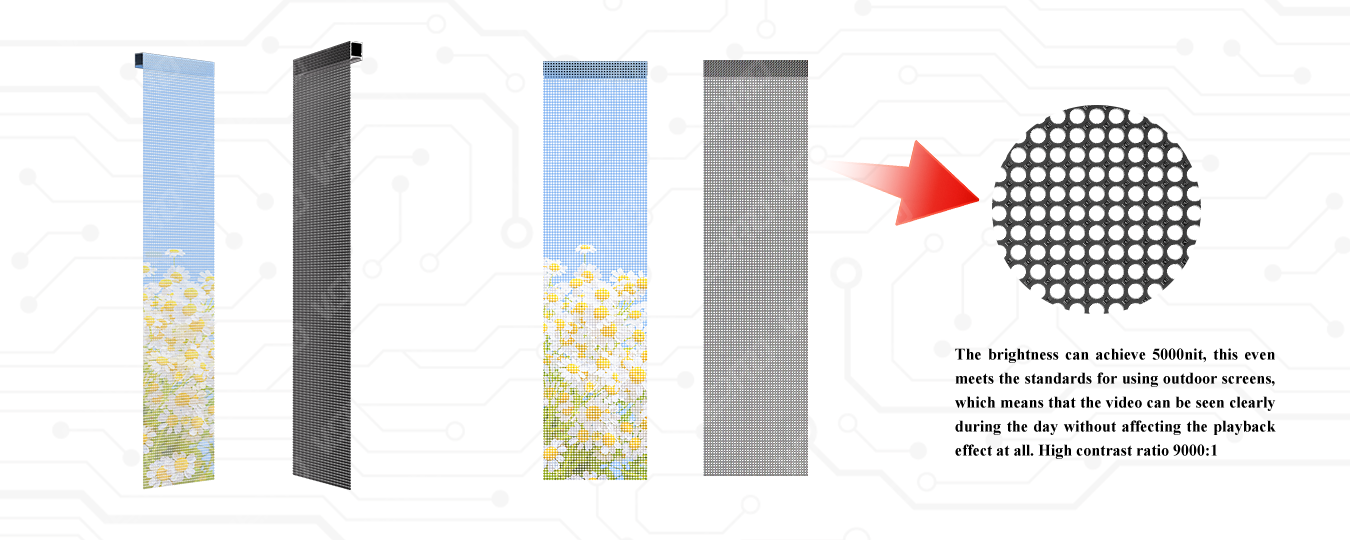

The brightness can achieve 5000nit, this even meets the standards for using outdoor screens, which means that the video can be seen clearly during the day without affecting the playback effect at all. High contrast ratio 9000:1
One Single LED Module height Max. is 1500mm, can create a 3m high screen without any visible bar in middle of the whole screen, which create amazing high transparent led display effect.
No technical expertise needed for HG Poster, making it accessible for all users. Easy to move and installation (hanging installation and floor-standing with wheels), no need for assembling and complex setup required, simply connect and start using the display. Good time-saving, it reduces installation and configuration time, improving efficiency.

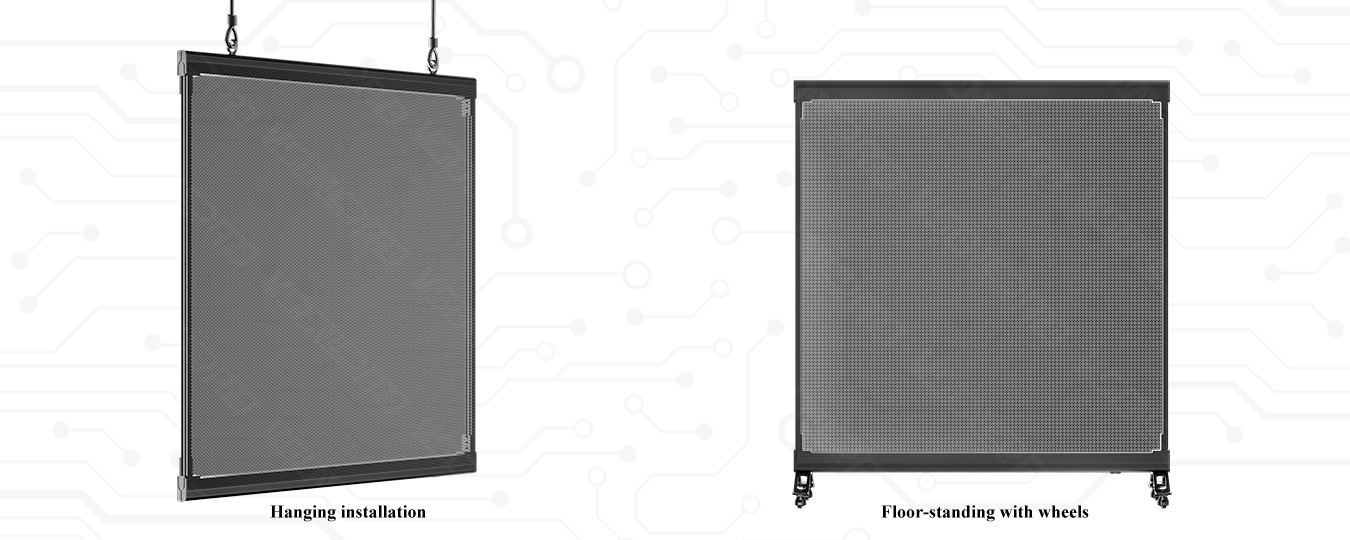

Diverse installation methods such as hanging, vertical installation, floor-standing with wheels.
Ideal for environments requiring maximum transparency, our transparent led screen delivers crystal-clear visuals without obstructing the view. Perfect for retail displays and innovative architectural designs.
No technical expertise needed for HG Poster, making it accessible for all users. Easy to move and installation, no need for assembling and complex setup required, simply connect and start using the display. Good time-saving, it reduces installation and configuration time, improving efficiency.
Items | HG-2 | HG-3 | HG-6 |
Pixel Pitch (mm) | 2.5 | 3.91 | 6.25 |
Pixel Density (dot/㎡) | 160000dot/ m² | 65536dot/ m² | 25600dot/ m² |
Display size(mm) | 125* 1000 | 250* 1000/250* 1175/250* 1475 | 1250* 1175/250* 1475 |
Panel Splicing for Large-Screen Integration | 125* 1000 | 250* 1000/250* 1175/250* 1475 | 1250* 1175/250* 1475 |
Brightness | 1200 | 4000 | 5000 |
Weight (kg/set) | 1.65 | 1.6 | 1.6 |
Max .Power | 600W/m² | 800W/m² | 800W/m² |
Ave. Power | 200W/ m² | 267W/ m² | 267W/ m² |
Transparency | ≥70% | ≥80% | ≥85% |
Scan | Single point single control, static drive | ||
| Led Control System | Synchronous/Asynchronous | ||
| Operation Power | AC 100-240V 50-60Hz | ||
IP Rating | IP 20 | ||
| Gray Scale | 14-16 bits | ||
| Work Environment | Working Temperature:-20℃ ~ 50℃ Working Humidity:20%-85% RH | ||
| Life | 10 ,0000H | ||
Q: What is a Holographic LED Screen?
A Holographic LED Screen is a high-resolution, transparent LED display that creates the illusion of floating imagery by displaying bright content on a transparent substrate against a dark background.
Q: What are the key advantages and applications of Holographic LED Display?
The key advantages of Holographic LED Screen, including high transparency, exceptional brightness, and captivating visual impact, make it ideal for applications in retail advertising, stage performances, museum exhibitions, and product launches, where its ability to display eye-catching and immersive content drives engagement and enhances the viewer experience.
Q: How complex and costly are installation and maintenance?
Installation requires careful planning for structure and cabling, maintenance is modular but specialized, and the overall cost is very high, typically priced per square meter, making it a premium investment for high-end commercial and artistic projects.
Q: Does it show true 3D or just 2D imagery?
The screen itself is a 2D plane; it creates a compelling illusion of 3D through expertly designed content that utilizes perspective, depth, and motion parallax to trick the brain into perceiving volume and space, rather than generating a true light field.
Q: Can Holographic Led Display be effectively used outdoors?
Outdoor use is challenging due to intense sunlight requiring extreme brightness and the need for high weatherproof durability, making it more suitable for nighttime or shaded events where its visual impact can be preserved.
